Overview of CNC Sheet Metal Bending
CNC sheet metal bending is a core precision forming process in modern sheet metal manufacturing, widely adopted in foreign trade customized production. Relying on computer numerical control systems and professional press brake equipment, the process applies controllable mechanical pressure to metal sheets, causing plastic deformation of materials to form preset angles, radii and three-dimensional shapes. It is a non-cutting forming technology that features high precision, high consistency and strong batch stability, which fully meets the strict dimensional tolerance and appearance quality requirements of overseas customers in automotive, aerospace, mechanical equipment, electrical enclosures, communication hardware and architectural metal parts industries.
Core Working Principle

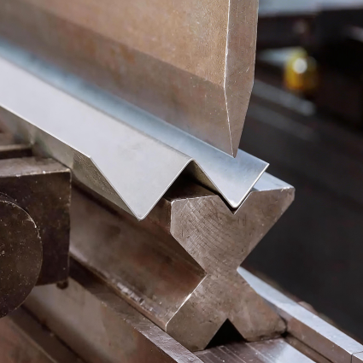

The basic principle of CNC bending is based on the plastic deformation characteristics of metal materials. Under the precise pressure of the press brake punch and die, the outer layer of the sheet metal is stretched, the inner layer is compressed, and the middle neutral axis maintains the original length, realizing stable bending forming without material fracture or structural damage.
Key Influencing Parameters & Quality Control Standards
Core Influencing Parameters
Material properties: Different metals have unique springback, hardness and toughness. Stainless steel requires springback compensation; soft aluminum alloy needs precise pressure control against deformation.
Sheet thickness: Thick sheets need higher tonnage and bigger V-dies; ultra-thin sheets require low-pressure pressing to avoid surface damage.
Bending radius: Improper radius leads to material cracking or poor assembly accuracy.
Foreign Trade Grade Quality Standards
- Angle tolerance: ±0.5° (standard); ±0.1°~±0.3° (high-precision)
- Dimensional tolerance: ±0.1mm~±0.3mm, ISO standard compliant
- Surface quality: Flawless bending surface without scratches, cracks or deformation
- Batch consistency: Qualified batch error for universal part interchangeability
Matching punches and V-dies will be selected per workpiece thickness and bending radius: small V-dies for thin sheets, and large V-dies for thick, high-hardness materials to prevent cracking and indentation. After tool installation, staff calibrate tool parallelism and verticality. The CNC system adjusts backgauge position and conducts crowning calibration to offset mechanical deformation, ensuring uniform bending precision on the whole workpiece.
Complete CNC Bending Process Flow
roduction. Technicians test finished samples via precision measuring devices, adjust CNC parameters for material springback compensation, and verify sizes, angles and flatness. Formal production starts only when samples pass customer requirements and international processing standards. Formal Batch Bending Processing The CNC system runs automatic full-process bending, covering sheet positioning, clamping, pressure forming and tool reset. Operators only finish feeding and blanking work. The equipment executes multi-angle bending in optimized order for high-efficiency continuous production. Built-in sensors monitor processing in real time and adjust operating parameters to ensure zero bending deviation.

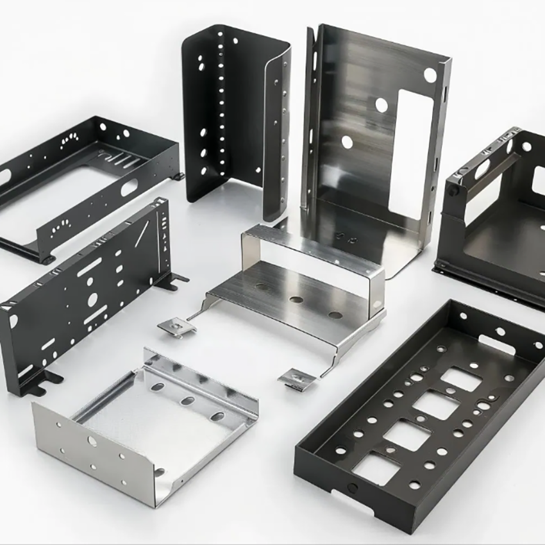

All bent workpieces receive full dimensional and appearance inspection on bending tolerance, dimension accuracy, radian consistency and surface quality. Minor burrs and indentations will be removed via fine finishing. Defective parts will be sorted out for rework to comply with export standards. Qualified products will be sorted and stacked for subsequent welding, polishing, spraying and assembly procedures.
